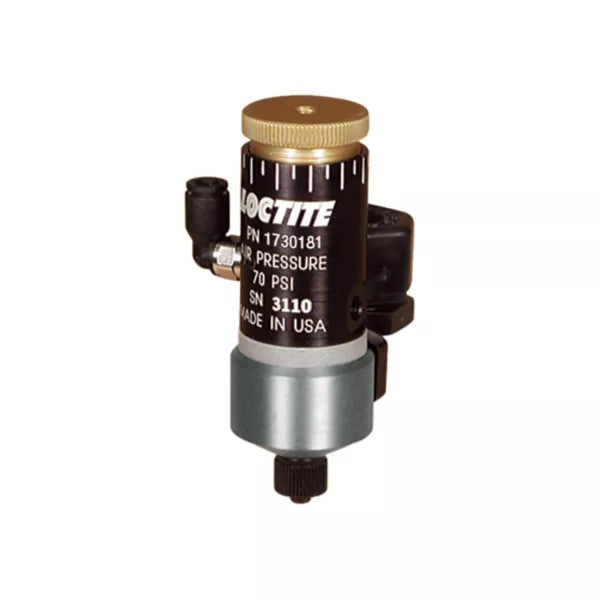

LOCTITE® VA15 Diaphragm Valve 1730181
Glue Dispensing

LOCTITE® VA15 Diaphragm Valve 1730181

Sale price$1,900.00
Sold Out
0.0
Description

LOCTITE® VA15 Diaphragm Dispense Valve is a normally closed diaphragm valve that provides high-resolution stroke adjustment and results in consistent flow control and bubble-free, no-drip dispensing. This valve is suitable for all low- to medium-viscosity silicones and other moisture sensitive adhesives. The valve has a small profile with a 23 mm (0.9") diameter and 63 mm (2.5") length. It has a simple design, which facilitates field repair. The valve is compatible with LOCTITE® Dual Channel Integrated Dispenser, 0-100 psi and Dual Channel Integrated Dispenser, 0-15 psi.

Use with integrated dispense reservoirs to form a complete dispensing system

  • Valve chamber is 316 stainless steel material
  • Compatible with all LOCTITE low- to medium-viscosity products
  • Can be used in stationary mounted, robotic, or handheld applications
  • Optional handheld pistol grip trigger available
  • Optional mounting bracket available
  • RoHS compliant
  • Included in the Box: (1) Valve Assembly; (1) air line tubing, 5 ft. (attached to valve); (1) product tubing, 6 ft., 0.25 in. OD, PTFE-lined; (1) valve mount screw; (1) needle kit; (1) operating manual
