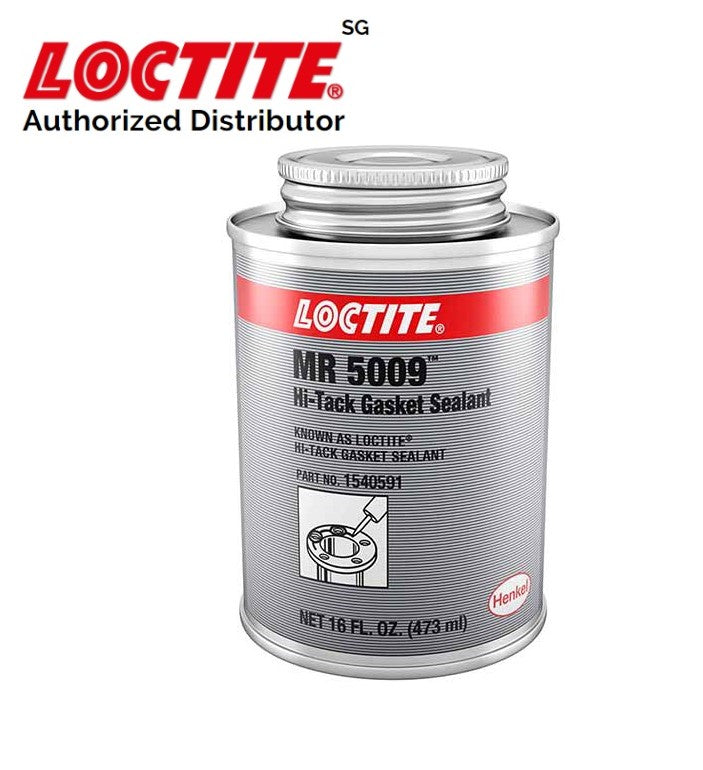

LOCTITE MR 5009

LOCTITE MR 5009

• Specific Gravity Temperature : 25 °C
• Viscosity : Medium
• Color : Red
• Curing Type : Solvent evaporation
• Application : Gasket sealant

LOCTITE® MR 5009 is a red, viscous, solvent-based liquid with a characteristic odor which is a blend of elastomers and resins in acetone. It is brushable and dries quickly to a highly tacky film and is designed to seal or bond rubber, cork, felt, paper and metal gaskets. It seals threaded hose connections, waterproofs and protects electrical terminals and wiring.

• Applies easily
• Fast drying
• Prevents seizing
• Assures correct gasket alignment
• Color coded for uniform application
• Allows easy disassembly
• Resists most automotive and industrial fluids

LOCTITE®
MR 5009™ is a red colored viscous liquid with a
characteristic solvent odor which is a blend of elastomers and
resins that is brushable and dries quickly to a highly tacky film.
It is designed to seal or bond rubber, cork, felt, paper and metal
gaskets. It seals threaded hose connections, waterproofs and
protects electrical terminals and wiring.
Typical applications include gaskets, threaded connections,
hose connections, weatherstripping, waterproofing for electrical
terminals, spark plugs and wires, rear axle assembly, tubeless
tyre beads, differential assemblies, filter lin connections and
terminal protector.

GENERAL INFORMATION

This product is not recommended for use in pure oxygen
and/or oxygen rich systems and should not be selected as
a sealant for chlorine or other strong oxidizing materials.
For safe handling information on this product, consult the
Safety Data Sheet (SDS).

Directions for use:

1. Clean surfaces to remove all dirt, oil, rust, paints and dried
   sealants. Keep surfaces dry and free from mold release
   agents.
2. Using brush, apply a thin, even coat on both surfaces to
   be assembled.
3. Allow to set until solvent has evaporated and film is dry.
4. Assemble parts. Pre-coat gaskets or bolts for
   convenience in assembling.
5. Remove with lacquer thinner.

Loctite Material Specification

LMS dated July-25, 2001. Test reports for each batch are
available for the indicated properties. LMS test reports include
selected QC test parameters considered appropriate to
specifications for customer use. Additionally, comprehensive
controls are in place to assure product quality and
consistency. Special customer specification requirements may
be coordinated through Henkel Quality.

Storage

Store product in the unopened container in a dry location.
Storage information may be indicated on the product container
labeling.
Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or
greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during
use. Do not return product to the original container. Henkel
Corporation cannot assume responsibility for product which
has been contaminated or stored under conditions other than
those previously indicated. If additional information is required,
please contact your local Technical Service Center or
Customer Service Representative.
