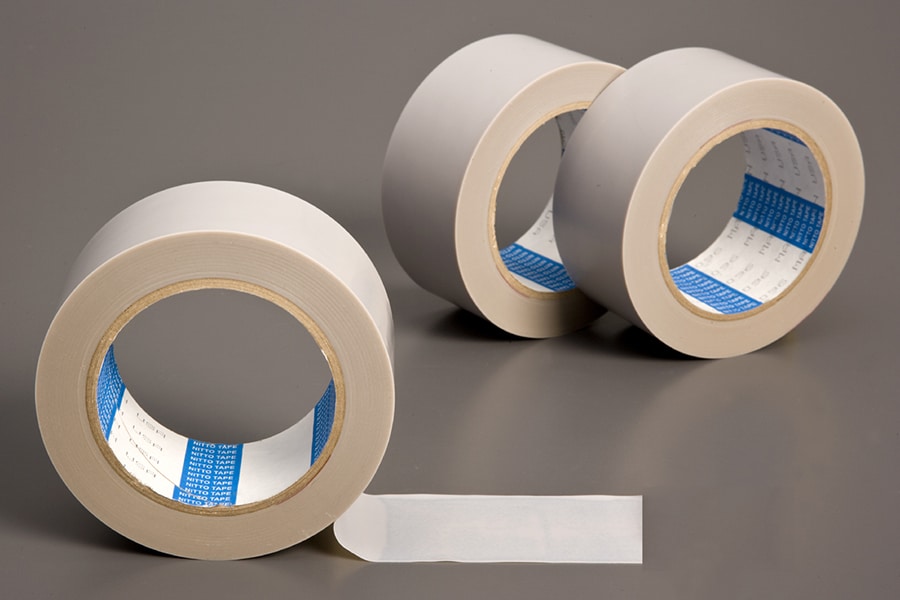

10-Mil PTFE FILM TAPE P-424 NAT

已售罄
0.0

描述

10-Mil PTFE FILM TAPE

P-424 is an extra heavy-duty version of P-422. This tape has excellent high and low temperature capabilities, is ideal for die-cut insulators and typically used in Aerospace and Electrical Markets

Features

  • Operates effectively over a wide temperature range of 250°F to 500° F because of its cured silicone adhesive.
  • Impervious to most chemical attacks, including acids, solvents, fuels and most alkalies.
  • The PTFE backing provides a low coefficient of friction, which makes for a slick, slippery surface that promotes the quick movement of materials

Structure

Properties

BACKING MATERIAL PTFE Film
ADHESIVE Cured Silicone
COLOR Gray
INSULATION CLASS UL 356°F/ 180°C
CERTIFICATIONS UL-510
BOEING SPECIFICATIONS BAC 5034 Type IV
  IMPERIAL METRIC
TOTAL TAPE THICKNESS 11.6 mils 0.295 mm
TENSILE STRENGTH 60 lbs/in 114 N/10mm
ELONGATION 475% 475%
ADHESION TO STEEL 45 oz/in 4.9 N/10mm
DIELECTRIC STRENGTH 22,800 volts 22.8 kV
