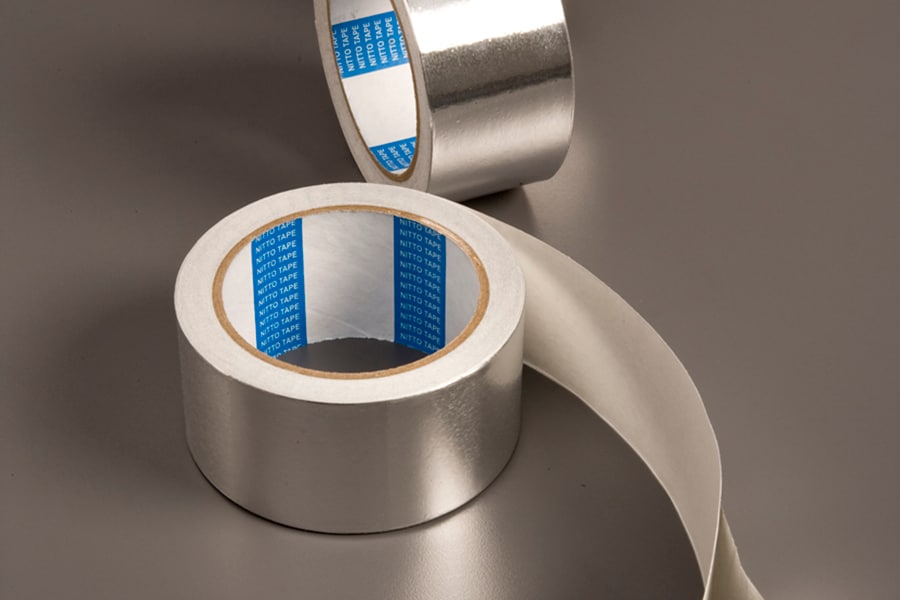

ALUMINUM FOIL CONDUCTIVE ADHESIVE P-111 AL
描述
阅读更多
少读
ALUMINUM FOIL CONDUCTIVE ADHESIVE
Provides the highest EMI/RFI shielding effectiveness available in an aluminum backed, pressure-sensitive adhesive tape. Offers excellent solder ability and is highly conformable.
Features
- Offers high conformability plus excellent solder ability.
- Outstanding adhesion provided by an insulating, chemically-pure, non-corrosive, solvent and heat resistant thermosetting acrylic adhesive.
- P-111 AL can be slit from 1/16” and up making this an economical installation solution to many production problems.
Structure
Properties
| BACKING MATERIAL | Aluminum Foil |
|---|---|
| ADHESIVE | Acrylic, thermosetting, solvent resistant, conductive, interlined |
| COLOR | Aluminum |
| INSULATION CLASS | 155 degree C |
| CERTIFICATIONS | UL-510 |
| IMPERIAL | METRIC |
| TOTAL TAPE THICKNESS | 3.8 mils | 0.097 mm |
|---|---|---|
| TENSILE STRENGTH | 16 lbs/in | 28 N/10mm |
| ELONGATION | 5% | 5% |
| ADHESION TO STEEL | 49 oz/in | 5.4 N/10mm |
