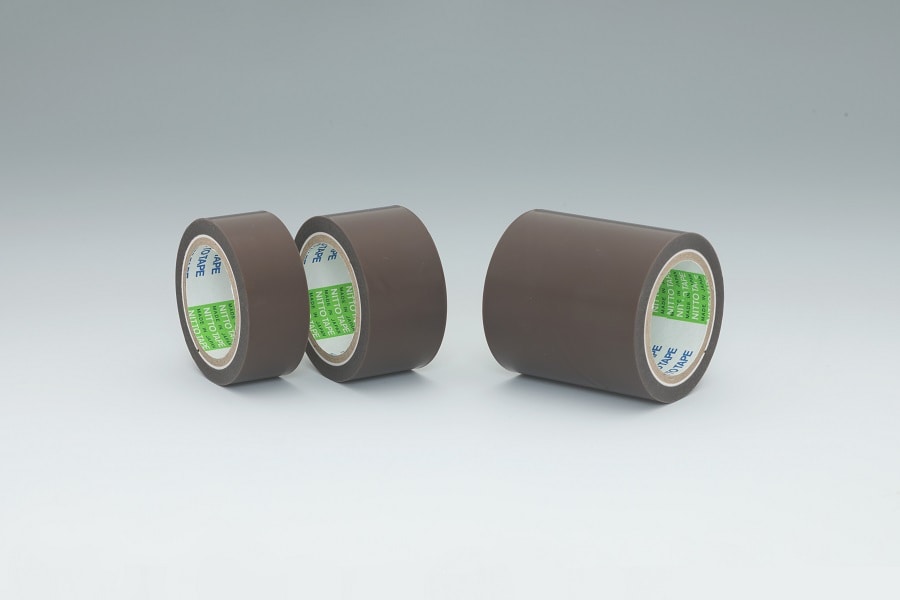

Fluoroplastic (PTFE) Adhesive Tape with Excellent Heat Resistance, Insulation, Sliding. NITOFLON™ No.903UL

Adhesive tape with silicone adhesive applied to fluoroplastic (PTFE) film. Can be used in a temperature range of -60°C to 200°C and meets UL-510 flame retardant standards. Excellent electrical insulation and sliding property. Can be used in a variety of applications utilizing the features of fluoroplastic.

Features

• Excellent properties such as heat resistance, electrical insulation, sliding property, water repellency and releasability.
• Can be used continuously in a wide range of -60°C to 200°C (recommended value), and can be used at higher temperatures for short periods of time.
• Certified UL510 flame retardancy standard (Registration Number E34833).
• It performs good adhesion to various materials.

Structure

Applications

• Insulation of electric wires, cables, and coils
• Electrode insulation in power storage devices such as secondary batteries
• Heat-resistant sliding of printer paper-feeding section
• Insulation and sliding of motor drive systems
• Solder masking
• Friction noise control inside automobiles or friction control in sliding sections
• Improve releasability during molding process

Properties

Experimental video

Heat Resistance

Sliding Properties

Electrical Insulation

Chemical Resistance

Mold Release Properties

Weather Resistance
