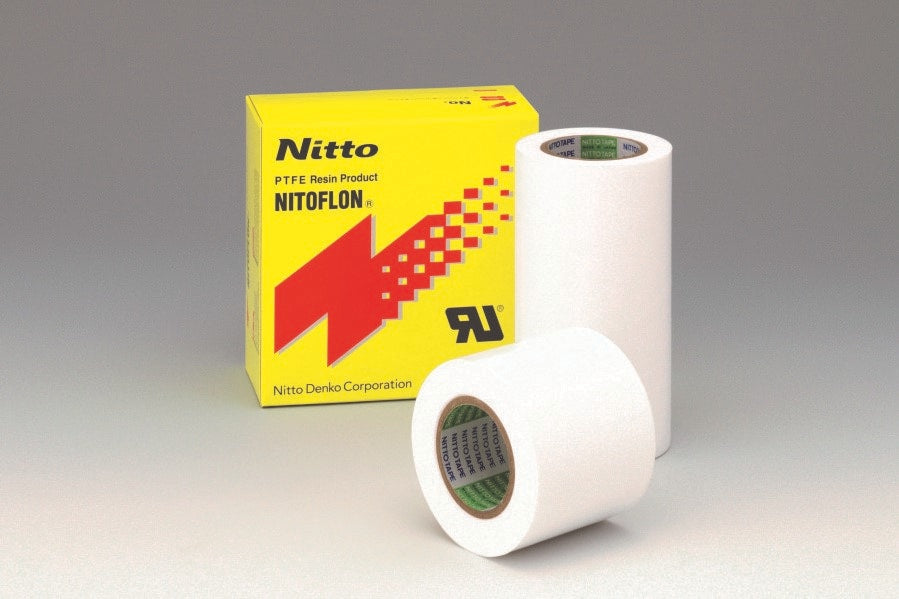

Fluoroplastic (PTFE) Film with Excellent Heat Resistance, Mold Release, Insulation, Chemical Resistance. NITOFLON™ No.900UL
描述
阅读更多
少读
Film made of fluoroplastic (PTFE).Can be used in a temperature range of -100°C to 260°C, certified for UL94 flame retardancy standard (V-0 or VTM-0, registration number E52859).Many excellent properties such as heat resistance, electrical insulation, sliding property, chemical resistance, and non-adhesiveness.
Features
- Rich lineup of thicknesses from 0.03 to 1.5 mm.
- Excellent chemical resistance. Resistant to most acids, alkalis and organic solvents
- Excellent electrical properties such as high dielectric breakdown voltage, and little dielectric loss.
- Can be used continuously from -100°C to 260°C (recommended value), and can be used at higher temperatures for short periods of time.
- The lowest friction coefficient among all solid materials.
- Adhesive substances do not easily adheres, and can be easily removed from the mold even if coming in contact with it.
- No hygroscopicity and almost no characteristic deterioration due to ultraviolet rays, etc.
- Certified for UL94 flame retardancy standard (V-0 or VTM-0, registration number E52859)
Structure
Applications
- Improve releasability during molding process.
- Mold release and cushioning for thermal compression bonding such as ACF and TCB.
- Heat-resistant insulation for motor and transformer coils.
Properties
| Property | Unit | Characteristic value | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Thickness | mm | 0.03 | 0.05 | 0.08 | 0.10 | 0.13 | 0.18 | 0.3 | 0.5 | 1.0 | |
| Tensile strength | MPa | 47 | 50 | 50 | 50 | 50 | 50 | 50 | 45 | 40 | |
| Elongation | % | 300 | 300 | 300 | 310 | 320 | 330 | 330 | 370 | 400 | |
| Breakdown Voltage | kV | 4.2 | 6.0 | 8.3 | 9.6 | 11.6 | 14.1 | 19.5 | 26.7 | 37.7 | |
| Dielectric constant (1MHz) | - | 2.1 | |||||||||
| Volume resistance | Ω・cm | over 1×1017 | |||||||||
| Chemical resistance |
HNO3(60%) | % | 0 | ||||||||
| NaOH(40%) | % | 0 | |||||||||
| Acetone | % | 0 | |||||||||
| Specific gravity | - | 2.1～2.3 | |||||||||
| Coefficient of kinetic friction | - | 0.1 | |||||||||
| Flame resistance | - | UL94(E52859) VTM-0(0.03~0.24mmt) / V-0(over 0.25mm） |
|||||||||
*This data represents examples of measured values, and not guaranteed values.
