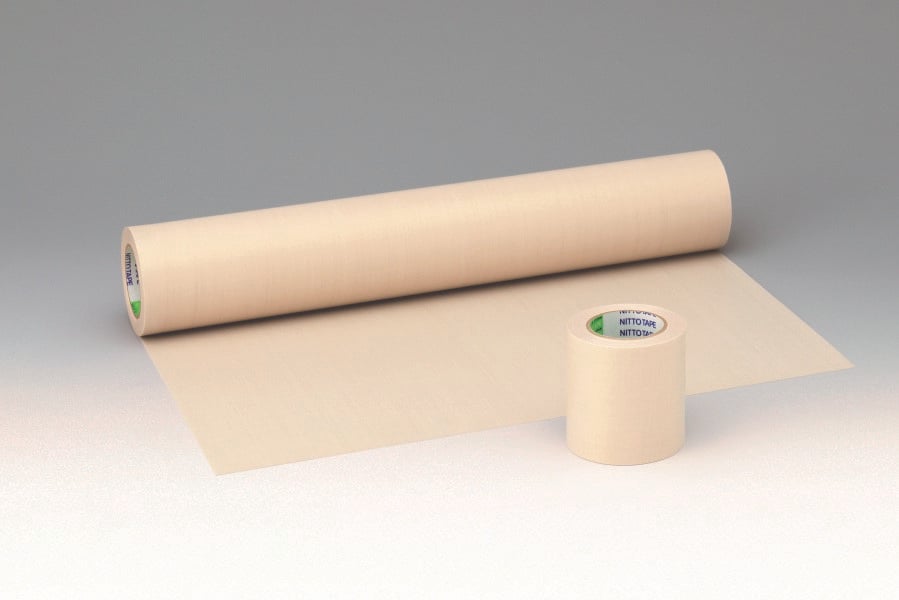

Fluoroplastic Saturated Glass Cloth NITOFLON No.970-2UL/No.970-4UL/No.9700UL

Name: Fluoroplastic Saturated Glass Cloth NITOFLON No.970-2UL/No.970-4UL/No.9700UL
Brand: Hong Teck Hin
Availability: OutOfStock

已售罄

0.0

描述

Non-alkali glass cloth impregnated with PTFE and sintered.

NITOFLON No.970-2UL/No.970-4UL/No.9700UL consist of a non-alkali glass cloth base impregnated with polytetrafluoroethylene (PTFE) and sintered. Exhibits excellent features such as chemical resistance, electrical properties, weather resistance and non-adhesiveness.

Features

Three types of different smoothness: No.970-2UL general type, No.970-4UL heavy impregnated type, and No.9700UL surface-smooth type.
Polytetrafluoroethylene composite with stable molecular structure that is not affected by virtually all industrial chemicals or solvents.
Available for continuous use in a wide range of temperature; from -100°C to 260°C. Along with the superior dimensional stability of the cloth base material at both high and very low temperatures, it also has superior thermal properties compared to other thermoplastics.
Both dielectric constant and dielectric loss tangent are lowest and remain stable in a wide range of frencies.
Superior resistance to weather, moisture, and contamination.
Lowest static friction coefficient among all solid materials. It demonstrates unique self-lubricating property of lowering static friction coefficient as the load increases. With its non-adhesiveness and mold-releasing property, no adhesive substance attaches to it and makes mold-releasing easy when it comes into contact with adhesive substance.

Structure

*Adhesive type is also available.

Properties

Property		Unit	Characteristic value
Property		Unit	No.970-2UL			No.970-4UL			No.9700 UL
Base material thickness		[mm]	0.05	0.10	0.13	0.05	0.10	0.13	0.05	0.10	0.13
Total thickness		[mm]	0.07	0.12	0.17	0.08	0.13	0.18	0.08	0.14	0.18
Tensile strength	Lengthwise	[N/15mm]	200	430	490	200	430	490	200	430	490
Tensile strength	Widthwise	[N/15mm]	160	370	460	160	370	460	160	370	460
Friction 8 coefficient		-	0.08	0.08	0.10	0.08	0.08	0.10	0.08	0.08	0.10
Breakdown voltage		[kV]	-	-	-	1.3	1.4	1.9	1.3	1.5	1.6
Volume resistivity		[Ω・cm]	-	-	-	10¹⁶	10¹⁶	10¹⁶	10¹⁶	10¹⁶	10¹⁶

[Remarks]

*The above values are sample observed values, not the guaranteed performance.

Application

For molding: mold-releasing sheets.
For printing: drying screen-printing machines.
For apparels: adhesive interlining belts.
For food processing: heat sealers, frozen food transportation, defrosting belt and baking belt.
For packing: shrink film packaging and side band sealing.
For office equipments: paper conveyor belt of copiers.
