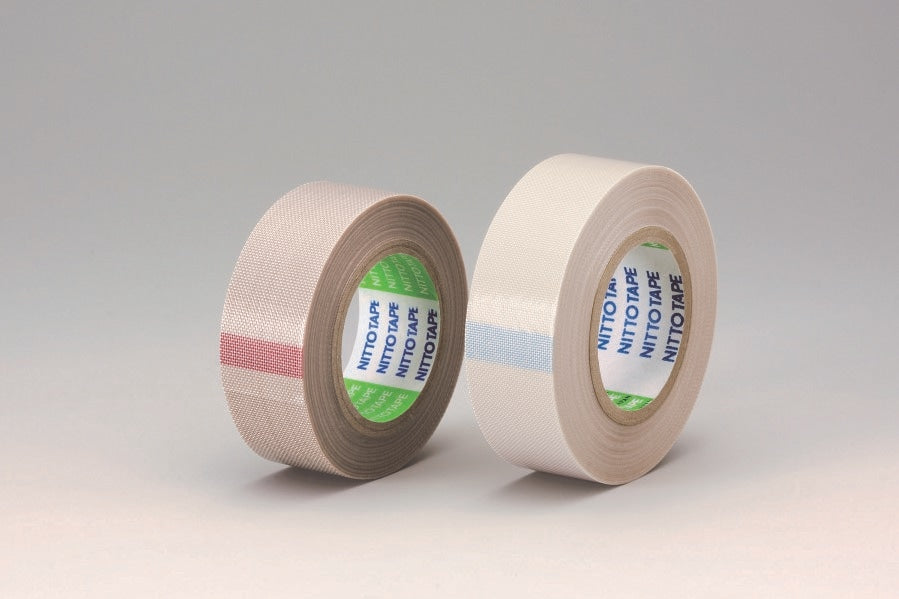

Fluoroplastic Saturated Glass Cloth Tape NITOFLON No.973UL-S/973UL
描述
阅读更多
少读
Excellent heat resistance, releasing property and mechanical strength. Contribution to the heat-resistant releasing of heat sealing equipments.
Glass cloth base material impregnated with polytetrafluoroethylene (PTFE) dispersion then sintered. Single surface treated and coated with a silicone adhesive, which exhibits excellent heat resistance and mechanical strength.
Features
- UL510 certified.
- Environment-friendly and conforms to Notification No.20 of the Ministry of Health, Labor and Welfare.
- Superior mold-releasing and sliding properties.
- Good holding property at elevated temperatures and dimensional stability.
- The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.
Structure
Properties
| Item | Unit | No.973UL-S | No.973UL | Test Method | ||
| Thickness | mm | 0.13 | 0.15 | 0.18 | Compatible with JIS C 2107 | |
| Tensile strength | N/19mm | 240 | 590 | 530 | ||
| Adhesive strength | 25°C | N/19mm | 6.8 | 9.0 | 9.7 | |
| 100°C | 3.2 | 3.9 | 4.7 | |||
| 150°C | 2.2 | 2.6 | 3.0 | |||
| Unwinding force | N/19mm | 5.9 | 5.9 | 7.5 | ||
| Temperature range | °C | -60～200 | - | |||
[Remarks]
- *The above values are sample observed values, not the guaranteed performance.
Applications
- For heat-resistant masking.
- For heat-sealing.
- For heat-resistant electrical insulation.
Experimental video
Heat Resistance
Sliding Properties
Electrical Insulation
Chemical Resistance
Mold Release Properties
Weather Resistance
