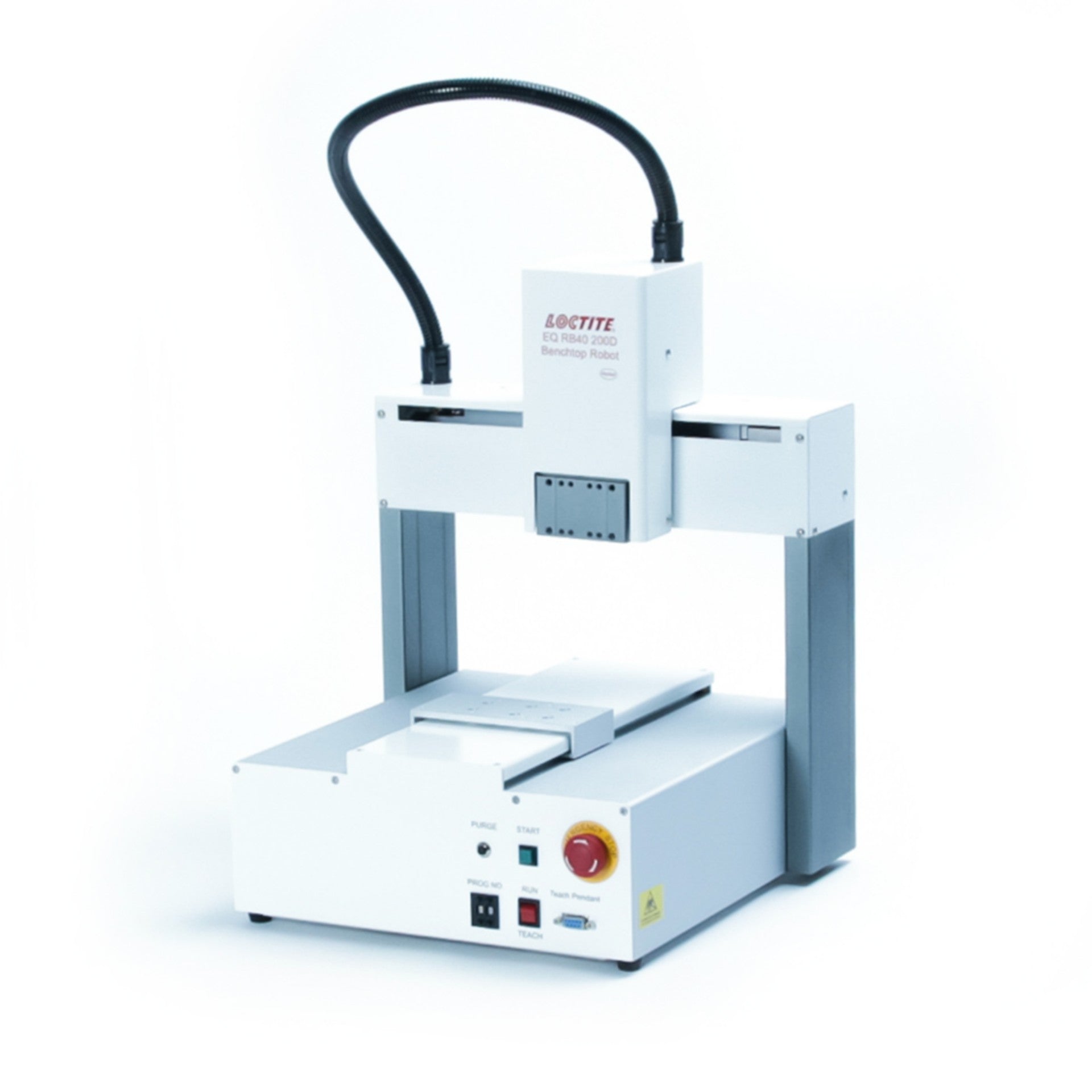

LOCTITE® RB40 200 D-Series Benchtop Dispensing Robot 2104801
描述
阅读更多
少读
Benchtop Dispensing Robot with 3-axis control (200 x 200 x 100mm). Integrates easily with a range of LOCTITE® dispensing and curing systems for fast and precise dispensing.
When it comes to dispensing adhesives, the LOCTITE® RB40 200 D-Series Benchtop Dispensing Robot is designed for speed, precision, repeatability and quality. It has a 200 x 200 x 100mm range of operation (X,Y,Z) and can be easily integrated with a variety of LOCTITE® dispensers, curing systems and other devices. Use with simple-to-program Teach Pendants. No programming experience needed! You may also need: - Teach pendants, dispensing equipment, cables and mounting hardware are all sold separately. - Optional programming software and camera are also available.
Technical Information
| Applications | Dispensing Adhesives |
| Key characteristics | Axis: 3 Axis |
| Maximum speed PTP - X,Y | 400.0 mm/s |
| Maximum speed PTP - Z | 200.0 mm/s |
| Operating type | Robotic |
| Portable weight limitations - tool light source | 2.0 kg |
| Portable weight limitations - work surface | 5.0 kg |
| Range of operation - X axis | 200.0 mm |
| Range of operation - Y axis | 200.0 mm |
| Range of operation - Z axis | 50.0 mm |
| Used to dispense | Adhesives-All |
LOCTITE® RB40 200 D-Series Benchtop Dispensing Robot 2104801
促销价格$21,228.00
