Sealing Material with Superior Resistance to Weather, Cold, Heat and Chemicals.
This is a semi-closed cell structure sealing material consisting of EPDM synthetic rubber foam. Various products with adhesive layers are available, and can be used for water, wind, dust, sound proofing, or thermal insulation according to compression ratios by utilizing the flexible foam properties.
Features
- Emission of VOC (Volatile Organic Compound) is reduced, making it suitable for the interior of vehicles or houses.
- Conforms well to irregular surfaces due to the low compressive stress, realizing excellent airtightness and sound insulation.
- Superior resistance to heat, cold, ozone, low blooming under prolonged use, and almost no adherend contamination.

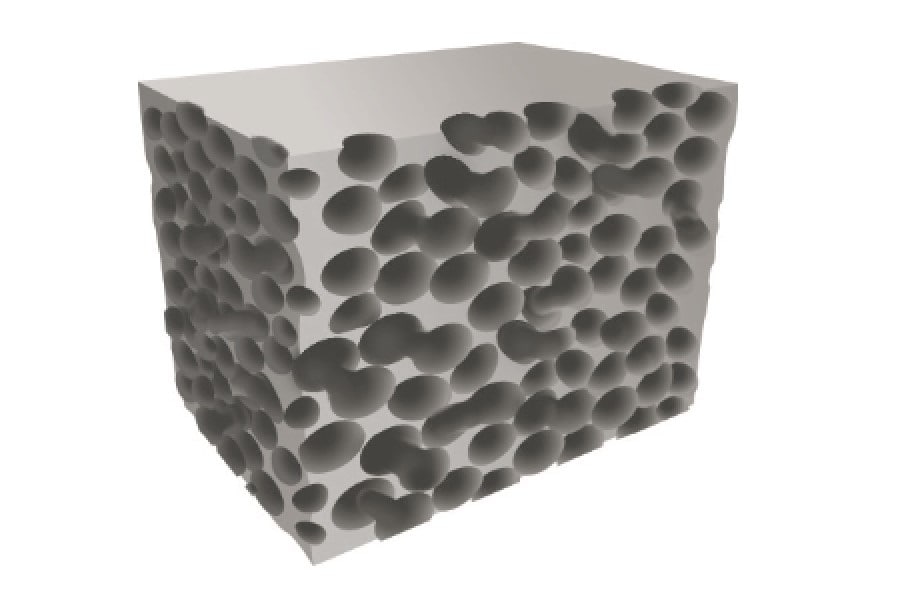

Structure
Standard Size
|
Thickness [mm]
|
Width [mm]
|
Length [m]
|
|
3-30(with adhesive 3-35)
|
1,000 | 2 |
Properties
JIS K 6767 Compliant
| Product No. | Apparent density(g/cm 3 ) | Tensile strength [N/cm2] |
Elongation[%] | Compressive hardness[N/cm2] | |
| 25% | 50% | ||||
| EV1000 Series | 0.07 | 5.0 | 400 | 0.23 | 0.35 |
[Remarks]
*The figures are a sample of observed values, not guaranteed performances.
Applications
- Air sealing, soundproofing, and thermal insulation of vehicle interiors
- Air sealing and thermal insulation of the interior of houses
