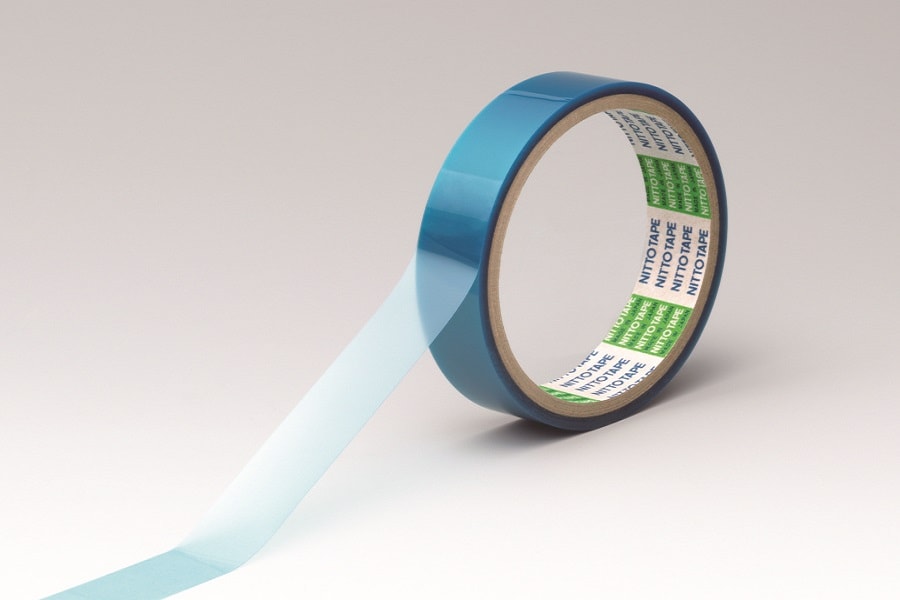

Polyester-based Silicone Adhesive Tape for Heat-resistant Plating Masking No.336/No.337
描述
阅读更多
少读
Thin substrate and thick adhesive for optimum plating masking.
Heat resistant plating masking adhesive tape with a thick adhesive layer applied to a polyester film. Minimum plating solution seepage, with high reliability.
Features
- Thin film allowing very flexible tape.
- Minimum plating solution seepage due to thick adhesive layer.
Structure
Properties
| Product No. | No.336 | No.337 | ||
| Thickness[mm] | Total | 0.060 | 0.080 | 0.100 |
| Substrate | 0.025 | 0.050 | 0.025 | |
| Standard length[m] | 33 | 33 | ||
| Color | Transparent / Blue | Blue | ||
| Peeling strength[N/19mm] | 6.4 | 6.6 | 6.2 | |
| Substrate strength [MPa] |
130 | 170 | 130 | |
| Elongation[%] | 80 | 100 | 80 | |
| Breakdown voltage[kV] | 5.4 | 7.5 | 5.5 | |
| Electrical corrosion factor | 1.00 | 1.00 | ||
[Remarks]
- *The figures are a sample of observed values, not guaranteed performance.
Applications
- Heat resistant masking
