Polyimide Film P-224
描述
阅读更多
少读

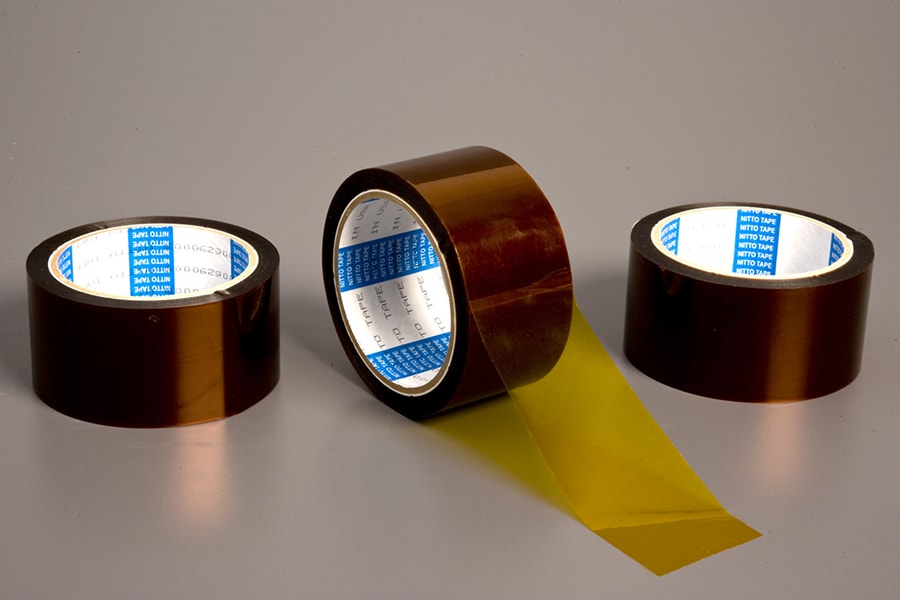

1-MIL KAPTON® POLYIMIDE FILM
P-224 is a thin, conformable tape with high thermal rating and exceptionally high dielectric strength with excellent solvent and Freon resistance. This product is a perfect non-silicone product for fixing Lithium Ion Batteries and a fine choice as bar code over laminate.
Features
- Provides unique properties of polyimide tapes: Boasts unique combination of thinness, conformability, tear resistance and high adhesion.
- Excellent solvent and Freon resistance, its acrylic adhesive permits its use in hermetic motor applications and for insulating and protecting components subjected to Freon-type cleaning agents.
- High performance Kapton® backing ensures consistent quality.
Structure
Properties
| BACKING MATERIAL | 1-MIL Kapton® Polyimide Film |
|---|---|
| ADHESIVE | Acrylic |
| COLOR | Amber |
| INSULATION CLASS UL | 311°F -155°C |
| INSULATION CLASS CSA | 311°F - 155°C |
| GOVERNMENT SPECIFICATIONS | ASTM D5213 TYPE 1, CLASS A (Replaces obsolete MIL-P-46112B) |
| IMPERIAL | METRIC |
| TOTAL TAPE THICKNESS | 2.8 mils | 0.071 mm |
|---|---|---|
| TENSILE STRENGTH | 36 lbs/in | 63 N/10mm |
| ELONGATION | 85% | 85% |
| ADHESION TO STEEL | 30 oz/in | 3.28 N/10mm |
| DIELECTRIC STRENGTH | 7,500 volts | 7.5 kV |
