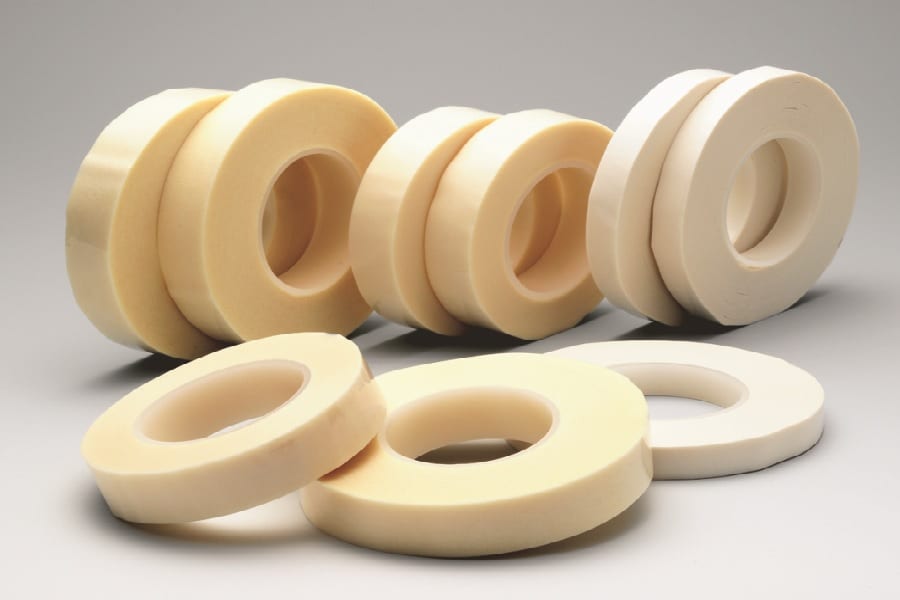

Special Polyester-Based Adhesive Tape With Excellent Tracking Resistance No.343B
描述
阅读更多
少读
Contributes to transformer downsizing with advanced tracking resistance.
Adhesive tape with acrylic adhesive applied to epoxy resin impregnated polyester non-woven cloth. Combines electrical insulation with UL certified flame retardance. Contributes to improved freedom and downsizing of transformer design, with advanced tracking resistance.
Features
- High electrical insulation properties.
- Acquisition of UL－746A, PLC－0. （CTI： Over 600V）600U or more).
- Conforms to CTI grade I of IEC-950.
Structure
Properties
| Product No. | No.343B | |
| Thickness[mm] | Total | 0.420 |
| Substrate | 0.370 | |
| Standers length[m] | 30 | |
| Color | White | |
| Peeling strength[N/19mm] | 17.0 | |
| Tensile strength[N/19mm] | 230 | |
| Elongation[%] | 33 | |
| Breakdown voltage[kV] | 8.0 | |
| Electrical corrosion factor | Over 0.98 | |
[Remark]
- *No．343B（UL510FlameRetardant・130°C temperature rating・CTI PLC of 0.E34833）
- The figures are a sample of observed values, not guaranteed performance.
Applications
- Outer insulation and terminanion of coils
