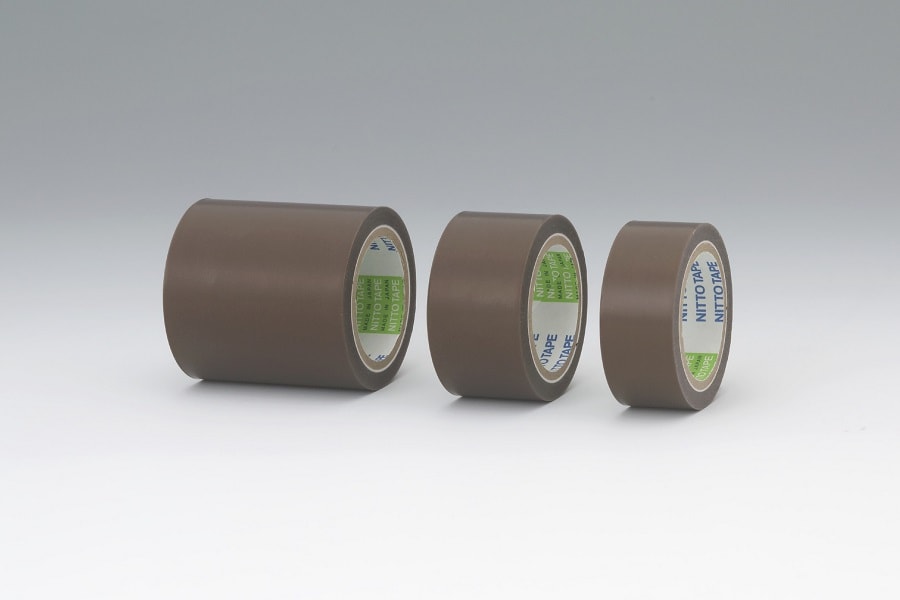

Thin PTFE Adhesive Tape NITOFLON™ No.903UT
描述
CO2 Reduction
阅读更多
少读
New Product Release. Earth-friendly Product Lineup.
The base material and adhesive become thinner and lighter, contributing to the reduction of CO2 emissions.
Features
- A thin type adhesive tape with a total thickness of 0.06 mm. Approximately 23% lighter than conventional products, contributing to resource conservation.
- It has excellent properties such as heat resistance, weather resistance, and low coefficient of friction.
- Can be used continuously from -60℃ to 200℃ (recommended value), and can be used at higher temperatures for short periods of time.
- Certified UL510 flame retardancy standard (Registration Number E34833).
Structure
Applications
- Insulation of electric wires, cables, and coils
- Insulation and sliding of motor drive systems.
- Friction noise control inside automobiles or friction control in sliding sections
CO2 Reduction
Properties
| Items | Unit | Characteristic value |
|---|---|---|
| Total Thickness | mm | 0.06 |
| 180° Peeling strength(Substrate : Stainless steel) | N/19mm | 4.3 |
| Unwinding force | N/19mm | 3.8 |
| Tensile strength | N/19mm | 44 |
| Elongation | % | 180 |
| Breakdown voltage | kV | 6.4 |
| Coefficient kinetic friction | - | 0.1 |
| Flame Retardant | - | UL510 Flame Retardant (E34833) |
| Usable temperature(Continuous use) | ℃ | -60~200 |
Experimental video
Heat Resistance
Sliding Properties
Electrical Insulation
Chemical Resistance
Mold Release Properties
Weather Resistance
