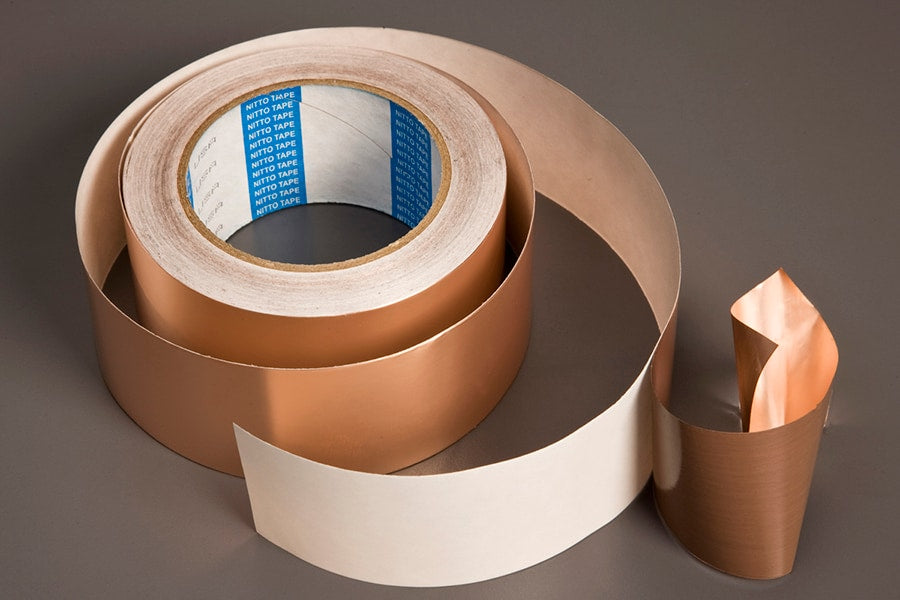

1 OZ. COPPER FOIL P-389 CO
Description
Read More
Read Less
1 OZ. COPPER FOIL
Engineered for EMI/RFI shielding on small electro-magnetic components. Bright, clean electro-deposited copper foil is soft annealed for improved conformability making it ideal in aerospace and electrical markets.
Features
- Outstanding adhesion is provided by an insulating, chemically-pure, non-corrosive, solvent and heat resistant thermosetting acrylic adhesive.
- Offers excellent solder-ability and high conformability.
- P-389 can be slit from 1/16” and up making this an economical insulation solution to many production problems.
Structure
Properties
| BACKING MATERIAL | Electro-deposited Copper Foil |
|---|---|
| ADHESIVE | Acrylic, thermosetting, solvent resistant, interlined |
| COLOR | Copper |
| INSULATION CLASS | 311°F/155°C |
| CERTIFICATIONS | UL-510 |
| GOVERNMENT SPECIFICATION | ASTM E595 |
| IMPERIAL | METRIC |
| TOTAL TAPE THICKNESS | 3.2 mils | 0.081 mm |
|---|---|---|
| TENSILE STRENGTH | 65 lbs/in | 114 N/10mm |
| ELONGATION | 5% | 5% |
| ADHESION TO STEEL | 65 oz/in | 7.1 N/10mm |
